Pure Copper Wire Mesh


Product Quick Details:

● Place of Origin: China, Anping
● Brand: TianHao
● Certification: ISO9001
● MOQ: 1 PCS/Sqm
● Packaging Details: folded and packed in wooden pallet
● Delivery Time: stocked items: within 3 works days;
● Customized items: 7-20 days
● Payment terms: T/T, PAYPAL, Western Union, Trade Assurance
● Supply Ability: 10000 units/sqm per week
Categories:

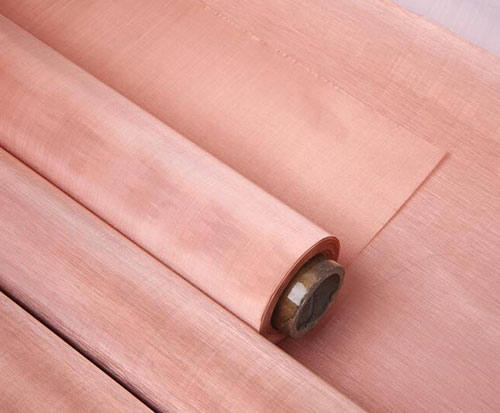

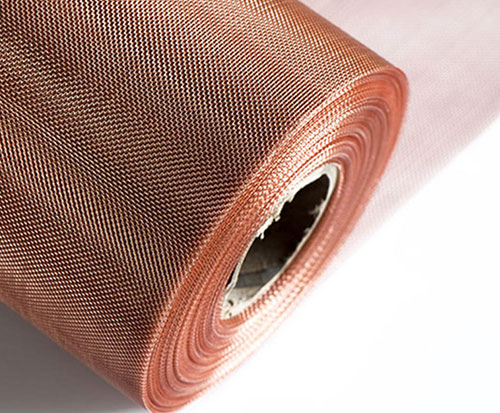

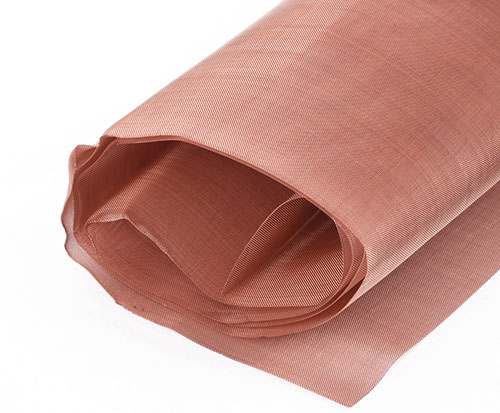

Copper is also called red copper because of the red color. The purity of copper is 99.8%. The copper wire is woven into a continuous and regular square meshes. The aperture of copper woven wire mesh can range from 2 meshes to 100 meshes, which can suit for different requirements. Except for the pure copper woven wire mesh, there are copper alloy woven wire mesh, such as the brass woven wire mesh and phosphor bronze woven wire mesh.



Copper wire has excellent electrical and thermal conductivity. Copper has high corrosion resistance in the marine environment making this alloy a good choice for salt and briny conditions. Copper is also resistant to marine life such as snails and mussels and has antibacterial properties.



The copper woven wire mesh is non-magnetic, so it is also called shielding screen in the circuits, laboratories and computer rooms, it also has outstanding wear resistance and sound insulation performance.



Specifications

Material: 99.8% copper wire.
Weaving type: plain weave.
Wire diameter: 0.0015″ – 0.063″.
Mesh size: 2 mesh – 250mesh.
Color: red.
Width: 1m, 1.5m, 1.5m and 2m.
Length: commonly is 30m, other sizes can be customized.

MESH

WIRE DIAMETER

APERTURE/OPENING

%OPEN AREA

INCH

MM

INCH

MM

1×1

.080

2.03

.920

23.37

84.6

2X2

.063

1.60

.437

11.10

76.4

3X3

.054

1.37

.279

7.09

70.1

4X4

.063

1.60

.187

4.75

56.0

4X4

.047

1.19

.203

5.16

65.9

5X5

.041

1.04

.159

4.04

63.2

6X6

.035

.89

.132

3.35

62.7

8X8

.028

.71

.097

2.46

60.2

10X10

.025

.64

.075

1.91

56.3

10X10

.020

.51

.080

2.03

64.0

12X12

.023

.584

.060

1.52

51.8

12X12

.020

.508

.063

1.60

57.2

14X14

.023

.584

.048

1.22

45.2

14X14

.020

.508

.051

1.30

51.0

16X16

.018

.457

.0445

1.13

50.7

18X18

.017

.432

.0386

.98

48.3

20X20

.020

.508

.0300

.76

36.0

20X20

.016

.406

.0340

.86

46.2

24X24

.014

.356

.0277

.70

44.2

30X30

.013

.330

.0203

.52

37.1

30X30

.012

.305

.0213

.54

40.8

30X30

.012

.305

.0213

.54

40.8

30X30

.009

.229

.0243

.62

53.1

35X35

.011

.279

.0176

.45

37.9

40X40

.010

.254

.0150

.38

36.0

50X50

.009

.229

.0110

.28

30.3

50X50

.008

.203

.0120

.31

36.0

60X60

.0075

.191

.0092

.23

30.5

60X60

.007

.178

.0097

.25

33.9

70X70

.0065

.165

.0078

.20

29.8

80X80

.0065

.165

.0060

.15

23.0

80X80

.0055

.140

.0070

.18

31.4

90X90

.005

.127

.0061

.16

30.1

100X100

.0045

.114

.0055

.14

30.3

100X100

.004

.102

.0060

.15

36.0

100X100

.0035

.089

.0065

.17

42.3

100X100

.0035

.089

.0065

.17

42.3

110X110

.0040

.1016

.0051

.1295

30.7

120X120

.0037

.0940

.0064

.1168

30.7

150X150

.0026

.0660

.0041

.1041

37.4

160X160

.0025

.0635

.0038

.0965

36.4

180X180

.0023

.0584

.0033

.0838

34.7

200X200

.0021

.0533

.0029

.0737

33.6

250X250

.0016

.0406

.0024

.0610

36.0
